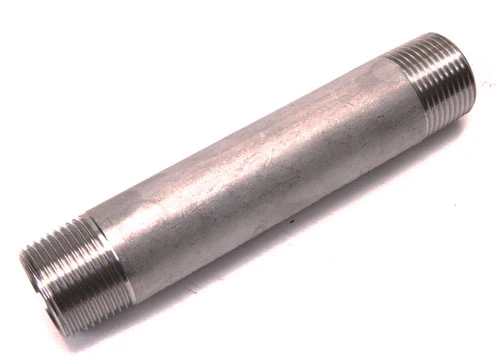

Threaded Nipple Incoloy 825 1½″ Class 150

Product Overview:

The Threaded Nipple Incoloy 825 1½″ Class 150 is a high-performance pipe fitting designed for industries requiring superior resistance to corrosion and high-temperature environments. Made from Incoloy 825, a nickel-iron-chromium alloy, this threaded nipple is ideal for joining two pipes in fluid and gas systems. It features a 1½″ size and a Class 150 pressure rating, making it suitable for medium-pressure applications. The threaded design ensures ease of installation while providing a secure, leak-proof connection.

Material Highlights:

Material: Incoloy 825

Pressure Rating: Class 150

Corrosion Resistance: Excellent resistance to acids, alkalis, and stress-corrosion cracking

Temperature Resistance: Operates well in temperatures up to 1020°F (550°C)

Weldability: Easily welded using standard methods due to its excellent weldability

Standard Compliance: Manufactured according to ASME B16.11 for threaded fittings

Material Composition (Elemental Content of Incoloy 825):

Nickel (Ni): 38-46%

Iron (Fe): Balance

Chromium (Cr): 19-23%

Molybdenum (Mo): 3-4.5%

Copper (Cu): 1.5-3%

Titanium (Ti): 0.2-0.6%

Aluminum (Al): 0.2% max

Carbon (C): 0.05% max

Silicon (Si): 0.50% max

Manganese (Mn): 1.00% max

Sulfur (S): 0.02% max

Incoloy 825 offers exceptional resistance to a wide range of acids and bases, making it perfect for use in harsh environments such as chemical processing, marine environments, and pollution control systems.

Technical Specifications:

Size: 1½″

Pressure Rating: Class 150

Material: Incoloy 825

Temperature Resistance: Up to 1020°F (550°C)

Connection Type: Threaded

Standard Compliance: ASME B16.11

Wall Thickness: Class 150 rating for medium-pressure systems

Dimensions: Customizable on request

Key Features:

Threaded Design: Easy to install and remove, providing flexibility in maintenance and repair work

Corrosion Resistance: Incoloy 825's high nickel and chromium content offers superior resistance to aggressive environments, including sulfuric acid, phosphoric acid, and seawater

High-Temperature Performance: Incoloy 825 maintains its strength and stability at elevated temperatures, with an operating limit of 1020°F (550°C)

Chemical Resistance: Ideal for use in chemical processing, power generation, and marine applications

Long-Term Durability: Ensures long-lasting performance under extreme conditions, minimizing maintenance costs over time

Applications:

Chemical Processing: Used in reactors, heat exchangers, and piping systems where resistance to acids and other corrosive agents is crucial

Marine and Offshore: Ideal for applications in saltwater environments where resistance to corrosion from seawater is needed

Pollution Control: Excellent for systems dealing with aggressive chemicals, such as in scrubbers and pollution-control equipment

Power Generation: Used in power plants, particularly for systems exposed to high temperatures and corrosive elements

Oil & Gas: Suitable for offshore and onshore piping systems in harsh environments

Related Products:

Incoloy 825 Threaded Tee 1½″ Class 150

Incoloy 825 Threaded Elbow 1½″ Class 150

Incoloy 825 Threaded Coupling 1½″ Class 150

Incoloy 825 Threaded Cap 1½″ Class 150

Incoloy 825 Flange 1½″ Class 150

SSM Advantages:

Premium Quality Incoloy 825: We supply Incoloy 825 fittings that offer exceptional performance even in harsh environments

Customizable Options: Our threaded nipples are available in a range of sizes and pressure ratings to meet your specific needs

Fast Lead Times: Our efficient production process ensures that your order is delivered on time

Technical Support: Our team is ready to assist you with technical specifications and product selection

Competitive Pricing: Enjoy high-quality products at cost-effective rates

Why Choose Us?

At SSM, we provide high-quality Incoloy 825 pipe fittings that deliver reliable and durable performance in demanding applications. Our Threaded Nipple Incoloy 825 1½″ Class 150 is designed to provide secure, leak-proof connections in systems where corrosion resistance and high-temperature stability are essential. Contact us today for more information or to place an order!
