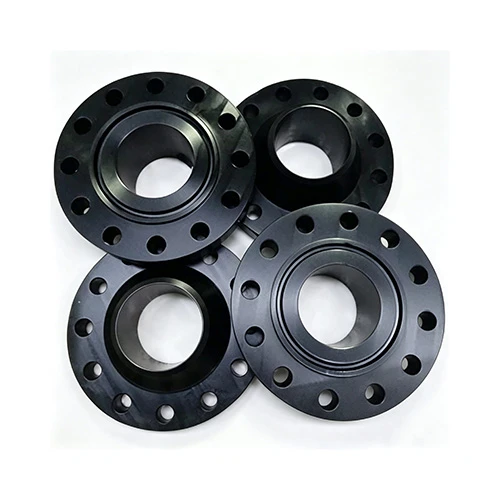

8" ASTM A694 F60 Weld Neck Flange RTJ Class 900 SCH80
8" ASTM A694 F60 Weld Neck Flange RTJ Class 900 SCH80 | High Yield Carbon Steel Flanges | SSM
SSM is a trusted global manufacturer and supplier of 8" ASTM A694 F60 Weld Neck RTJ Flanges, designed for high-pressure pipeline applications requiring excellent mechanical strength, reliable sealing performance, and long service life in oil & gas, petrochemical, offshore, power generation, and industrial piping systems.
The ASTM A694 F60 carbon steel Weld Neck RTJ Flange Class 900 SCH80 is widely used for connecting pipes, valves, pressure equipment, and pipeline components under demanding operating conditions. Its weld neck design provides superior stress distribution and fatigue resistance, while the RTJ (Ring Type Joint) sealing surface ensures reliable metal gasket sealing under high-pressure and high-temperature conditions.
Manufactured from high-yield forged carbon steel, ASTM A694 F60 flanges are specifically developed for critical pipeline systems where strength, durability, and safety are essential.
1. Product Overview
The 8" ASTM A694 F60 Weld Neck RTJ Flange Class 900 SCH80 is a forged high-strength carbon steel flange manufactured according to international standards, including ASTM A694 and ASME B16.5.
The weld neck flange is butt-welded directly to the pipe, creating a strong and permanent connection. The tapered hub design allows smooth stress transition between the flange and pipe, reducing stress concentration and improving fatigue resistance.
The RTJ facing is designed for use with metallic ring gaskets, providing excellent sealing performance in high-pressure pipeline systems.
With outstanding mechanical strength, excellent weldability, and reliable performance, ASTM A694 F60 weld neck flanges are commonly selected for oil and gas transmission pipelines, petrochemical plants, and other critical pressure applications.
Product Specifications:
| Item | Specification |
|---|---|
| Standard | ASME B16.5 / ASTM A694 / Custom |
| Material | ASTM A694 F60 Forged Carbon Steel |
| Flange Type | Weld Neck Flange (WN) |
| Facing Type | RTJ (Ring Type Joint) |
| Size | NPS 8" (DN200) |
| Pressure Rating | Class 900 |
| Bore | SCH80 Pipe Matching |
| Manufacturing Process | Forging, Heat Treatment, CNC Machining |
| Applications | Oil & Gas, Petrochemical, Offshore, Power Plants, Industrial Pipelines |
2. Material Properties (ASTM A694 F60 Carbon Steel)
ASTM A694 F60 is a high-strength forged carbon steel specification mainly used for pressure-containing components, including flanges, fittings, and valve parts.
It is designed for pipeline systems requiring higher yield strength and improved mechanical performance compared with standard carbon steel flange materials.
Chemical Composition (Typical):
| Element | Content (%) |
|---|---|
| Carbon (C) | ≤ 0.30 |
| Manganese (Mn) | ≤ 1.60 |
| Silicon (Si) | ≤ 0.40 |
| Phosphorus (P) | ≤ 0.025 |
| Sulfur (S) | ≤ 0.025 |
ASTM A694 F60 provides:
High yield strength for high-pressure pipeline applications
Excellent forging and machining performance
Good weldability
Reliable performance under demanding pressure conditions
Long service life in oil and gas systems
3. Mechanical Properties (Typical)
| Property | Value |
|---|---|
| Tensile Strength | ≥ 415 MPa |
| Yield Strength | ≥ 415 MPa |
| Elongation | ≥ 20% |
| Hardness | According to project requirements |
| Service Temperature | Approx. -29°C to +425°C (depending on application) |
4. Key Features
✅ High Strength Carbon Steel Construction
Manufactured from ASTM A694 F60 forged carbon steel, the flange provides excellent mechanical strength, pressure resistance, and structural durability for critical piping applications.
✅ Weld Neck Design for Superior Performance
The long tapered hub design provides smooth stress distribution from the flange to the pipe, reducing stress concentration and improving fatigue resistance compared with slip-on flanges.
✅ RTJ Sealing Surface for High Pressure Service
The Ring Type Joint (RTJ) facing uses metallic ring gaskets to achieve dependable sealing performance under high pressure and high temperature conditions.
✅ Class 900 High Pressure Rating
The Class 900 pressure class makes this flange suitable for demanding pipeline systems where higher pressure capability is required.
✅ SCH80 Bore Compatibility
The flange bore is machined to match SCH80 pipe wall thickness, ensuring proper welding fit-up, accurate alignment, and smooth flow transition.
✅ Compliance with International Standards
Manufactured according to:
ASTM A694
ASME B16.5
Customer-specific project requirements
5. Advantages and Limitations
Advantages:
Suitable for high-pressure pipeline applications
Excellent mechanical strength and durability
Superior fatigue resistance compared with slip-on flanges
Reliable RTJ metal gasket sealing system
Suitable for oil, gas, and petrochemical industries
Available with customized dimensions and inspection requirements
Limitations:
Higher cost compared with slip-on flange designs
Requires skilled welding installation
Not economical for low-pressure general piping applications
Requires proper RTJ gasket selection and installation
6. Applications
Oil & Gas Pipelines
Used for high-pressure transmission pipelines, process piping, compressor stations, and equipment connections.
Offshore Oil and Gas Facilities
Suitable for offshore platforms and subsea pipeline systems requiring high-strength and reliable flange connections.
Petrochemical and Chemical Plants
Applied in reactors, pressure vessels, pumps, valves, and high-pressure process piping systems.
Power Generation Facilities
Used in steam, fuel, cooling, and utility piping systems requiring high mechanical performance.
Industrial Pipeline Systems
Commonly installed in:
Pressure control systems
Pipeline infrastructure
Heavy industrial equipment connections
7. Why Choose SSM
30+ years of experience in forged carbon steel flange manufacturing
ISO 9001 quality management system certified
Compliance with ASTM A694 and ASME B16.5 standards
Advanced forging, heat treatment, CNC machining, and inspection capabilities
Complete material traceability with MTC documentation
Dimensional inspection, PMI testing, UT and NDT services available
Customized flange solutions for global engineering projects
Fast delivery and professional technical support
8. Conclusion
The SSM 8" ASTM A694 F60 Weld Neck RTJ Flange Class 900 SCH80 provides a high-performance and reliable connection solution for critical high-pressure piping systems.
With its high-yield carbon steel construction, weld neck design, RTJ sealing technology, and SCH80 bore compatibility, this flange delivers excellent strength, sealing reliability, and long-term service performance in industries such as oil & gas, petrochemical, offshore, power generation, and industrial pipeline systems.
SSM supplies high-quality ASTM A694 F60 Weld Neck RTJ Flanges with customized sizes, pressure classes, bore requirements, material certification, and inspection services to meet global project requirements.
📩 Contact SSM today for quotation and technical support for your ASTM A694 F60 Weld Neck RTJ Flange requirements.
