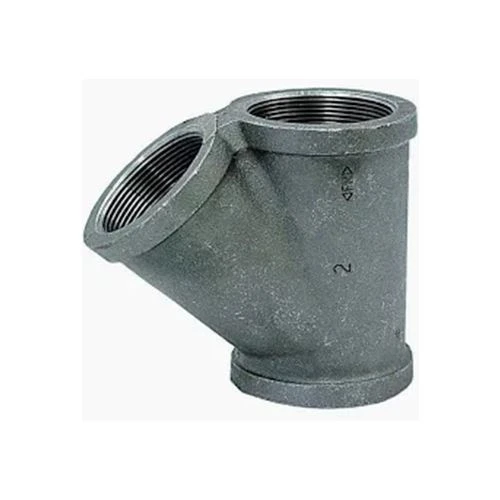

Forged Steel Threaded Lateral Tee – High Performance Forged Steel Pipe Fittings
✅ Forged Steel Threaded Lateral Tee – High Performance Forged Steel Pipe Fittings
SSM supplies premium quality Forged Steel Threaded Lateral Tees, designed for reliable branch connections and efficient fluid flow distribution in high-pressure industrial, oil & gas, hydraulic, instrumentation, and process piping systems.
Manufactured from high-quality forged steel materials such as ASTM A105 carbon steel, ASTM A350 LF2 low-temperature steel, and alloy steel options, these lateral tees provide excellent mechanical strength, pressure resistance, and long service life in demanding operating environments. The lateral branch design creates a smoother angled flow transition compared with standard tees, helping reduce turbulence and pressure loss while improving overall system efficiency.
With precision forging, accurate thread machining, and strict quality control, Forged Steel Threaded Lateral Tees ensure reliable sealing performance, flexible pipeline layouts, and durable operation in high-pressure threaded piping applications.
✅ Key Features
Product Type:
Forged Steel Threaded Lateral Tee / Forged Lateral Branch Fitting
Material:
ASTM A105 Carbon Steel / A350 LF2 / Alloy Steel / Stainless Steel Options
Standard:
ASME B16.11 / MSS SP-79 / BS 3799 / ISO / Custom Standards
Design Type:
Equal Lateral Tee / Reducing Lateral Tee (Available Options)
Connection Type:
Female Thread × Female Thread × Female Thread
Thread Standard:
NPT / BSP / BSPT / PT / Customized Thread Types
Branch Angle:
45 Degree Lateral Branch (Standard Configuration)
Manufacturing Process:
Forging + CNC Machining + Precision Threading
Pressure Rating:
Class 2000 / 3000 / 6000 / 9000
Surface Finish:
Black Oxide / Shot Blasted / Galvanized / Machined Finish
Size Range:
1/8" – 4" (DN6 – DN100)
(Custom Sizes Available)
Inspection & Certification:
Dimensional Inspection / Thread Inspection / Pressure Testing / MTC Available
🔧 Material Properties – ASTM A105 Forged Carbon Steel
| Property | Typical Value |
|---|---|
| Tensile Strength | ≥485 MPa |
| Yield Strength | ≥250 MPa |
| Elongation | ≥22% |
| Hardness | ≤187 HB |
| Density | Approx. 7.85 g/cm³ |
| Service Temperature | Approx. -29°C to +425°C |
⚙️ Advantages
✅ Smooth Lateral Branch Flow Design
The angled branch connection provides a smoother flow path compared with traditional 90-degree tees, reducing turbulence, pressure drop, and flow disturbance.
✅ High Strength Forged Construction
Manufactured through forging processes to achieve a dense internal structure, excellent mechanical strength, and superior resistance to pressure and impact.
✅ Reliable Threaded Connection
Precision-machined NPT, BSP, or BSPT female threads provide secure connections, excellent sealing performance, and easy installation without welding equipment.
✅ Flexible Piping Layout Solution
The lateral tee design allows branch pipelines to connect at an optimized angle, making it suitable for complex piping arrangements and space-limited installations.
✅ Excellent Pressure and Temperature Performance
Designed for demanding industrial applications requiring reliable performance under high pressure and temperature conditions.
✅ Multiple Material Options
Available in carbon steel, low-temperature steel, alloy steel, and stainless steel materials to meet different service environments.
📋 Technical Specifications
| Item | Specification |
|---|---|
| Fitting Type | Forged Steel Threaded Lateral Tee |
| Material | ASTM A105 / A350 LF2 / Alloy Steel / Stainless Steel |
| Branch Type | Lateral Branch |
| Branch Angle | Approx. 45 Degree |
| Connection | Female Thread |
| Thread Type | NPT / BSP / BSPT |
| Pressure Class | 2000 / 3000 / 6000 / 9000 |
| Standard | ASME B16.11 |
| Manufacturing | Forged Construction |
| Testing | Thread Inspection / Dimensional Inspection / Pressure Test |
| Certification | MTC / EN10204 3.1 Available |
✅ Applications
Oil & Gas Industry
Used in high-pressure piping systems, wellhead equipment, production facilities, and oilfield flow control systems.
Petrochemical Processing
Applied in chemical plants, refining units, and process piping systems requiring strong and reliable branch connections.
Hydraulic Systems
Suitable for hydraulic circuits, control systems, pumps, and pressure equipment connections.
Instrumentation Systems
Ideal for compact instrument piping, pressure control lines, and measurement equipment installations.
Power Generation
Used in auxiliary piping, fuel systems, cooling lines, and industrial equipment connections.
General Industrial Piping
Applied for air, gas, oil, and liquid distribution systems across various industries.
✅ Why Choose SSM
Over 30 years of experience in forged steel pipe fittings manufacturing
Professional production according to ASME B16.11 and international standards
Complete material traceability with MTC / EN10204 certification
Supply of ASTM A105, A350 LF2, alloy steel, stainless steel, and special alloy materials
Advanced forging, CNC machining, and precision thread inspection capabilities
Customized sizes, pressure classes, materials, and thread configurations available
Strict quality control ensures dimensional accuracy and reliable sealing performance
Reliable global supply capability with professional technical support
📩 Request A Quote
SSM can supply Forged Steel Threaded Lateral Tees in various sizes, materials, pressure classes, thread standards, and surface finishes to meet high-performance industrial piping requirements.
Contact SSM today for pricing, technical datasheets, material certificates, and worldwide shipping solutions.
