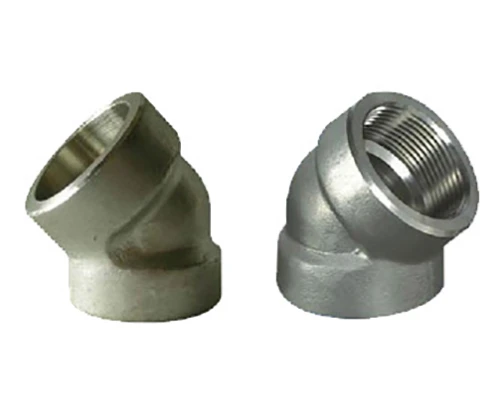

45° Stainless Steel Female Thread Elbow
45° Stainless Steel Female Thread Elbow | SSM
SSM is a trusted global manufacturer and supplier of 45° Stainless Steel Female Thread Elbows, designed for reliable pipe connection, directional flow control, and corrosion-resistant performance in industrial, marine, hydraulic, pneumatic, and instrumentation systems.
The 45° Stainless Steel Female Thread Elbow is a threaded pipe fitting used to change the direction of fluid flow by 45 degrees. Manufactured from high-quality stainless steel materials, it provides excellent corrosion resistance, mechanical strength, and long service life in demanding operating environments.
1. Product Overview
The 45° Stainless Steel Female Thread Elbow is designed with female threaded connections on both ends, allowing direct connection with male threaded pipes, tubes, valves, and other fittings.
Compared with welded elbows, threaded elbows offer faster installation, easier maintenance, and convenient replacement without specialized welding equipment. The 45-degree angle design provides a smooth directional change while minimizing pressure loss and turbulence in piping systems.
Product Specifications:
| Item | Specification |
|---|---|
| Standard | ASME B16.11 / BS 3799 / ISO / Custom |
| Material | Stainless Steel 304 / 304L / 316 / 316L |
| Fitting Type | Female Thread Elbow |
| Angle | 45 Degree |
| Connection Type | Female x Female Thread |
| Thread Standard | NPT / BSP / BSPT / PT / Custom |
| Size Range | 1/8" – 4" (DN6 – DN100) |
| Manufacturing Process | Investment Casting / Forging / CNC Machining |
| Applications | Marine, Hydraulic, Pneumatic, Chemical, Industrial Piping |
2. Material Properties (Stainless Steel)
Stainless steel is widely selected for threaded pipe fittings due to its excellent corrosion resistance, strength, and durability.
Stainless Steel 316 / 316L Typical Composition
| Element | Content (%) |
|---|---|
| Chromium (Cr) | 16–18 |
| Nickel (Ni) | 10–14 |
| Molybdenum (Mo) | 2–3 |
| Carbon (C) | ≤0.03 (316L) |
| Manganese (Mn) | ≤2.0 |
| Silicon (Si) | ≤1.0 |
Stainless Steel provides:
Excellent resistance to corrosion and oxidation
Superior performance in marine and chemical environments
Good mechanical strength and toughness
Long service life with minimal maintenance
3. Mechanical Properties (Typical)
| Property | Value |
|---|---|
| Tensile Strength | 485 – 620 MPa |
| Yield Strength | 170 – 310 MPa |
| Elongation | 30 – 40% |
| Hardness | ≤ 95 HRB |
| Service Temperature | Approx. -196°C to +400°C (depending on grade and application) |
4. Key Features
✅ 45° Direction Change Design
Provides a smooth change in piping direction compared with sharp-angle connections, helping reduce flow resistance and turbulence.
✅ Female Thread Connection
Allows quick installation and removal without welding, making it suitable for maintenance-friendly piping systems.
✅ Corrosion Resistant Stainless Steel Construction
Available in SS304, SS316, and SS316L materials for excellent resistance against moisture, chemicals, and seawater.
✅ Compact Installation
Ideal for limited-space piping systems where welded connections are not practical.
✅ Precision Thread Machining
Manufactured with accurate NPT, BSP, or BSPT threads to ensure secure sealing and leak-free connections.
5. Advantages and Limitations
Advantages:
Easy installation and replacement
Excellent corrosion resistance
Suitable for clean and hygienic applications
Compact design for space-saving piping layouts
Available in various stainless steel grades and thread standards
No welding equipment required during installation
Limitations:
Generally used for lower-pressure applications compared with socket weld fittings
Threaded connections may require sealant or PTFE tape
Not recommended for severe vibration systems without additional support
6. Applications
Marine and Shipbuilding Systems
Used in seawater piping, cooling systems, fuel lines, and hydraulic equipment.
Hydraulic and Pneumatic Systems
Suitable for compact tubing connections, control systems, and instrumentation applications.
Chemical Processing Equipment
Used where corrosion resistance and reliable threaded connections are required.
Food & Beverage Processing
Stainless steel construction supports hygienic piping applications.
Water Treatment Systems
Applied in filtration systems, pumps, and industrial water pipelines.
General Industrial Piping
Used for air, gas, oil, and liquid transfer systems.
7. Why Choose SSM
30+ years of experience in stainless steel pipe fitting manufacturing
Professional production of threaded elbows, adapters, couplings, and custom fittings
Materials available in SS304, SS304L, SS316, and SS316L
Compliance with international standards including ASME, ASTM, and ISO requirements
Advanced casting, forging, CNC machining, and inspection capabilities
Thread inspection and pressure testing available
Customized dimensions and OEM services supported
Fast global delivery for industrial projects
8. Conclusion
The SSM 45° Stainless Steel Female Thread Elbow provides a reliable and efficient solution for changing pipeline direction while maintaining excellent sealing performance and corrosion resistance.
With high-quality stainless steel materials, precision-machined threads, and compliance with international standards, it is widely used in marine, hydraulic, pneumatic, chemical, water treatment, and industrial piping systems.
SSM supplies premium-quality 45° Stainless Steel Female Thread Elbows with customized sizes, materials, thread types, and technical specifications to meet global customer requirements.
📩 Contact SSM today for quotation and technical support for your stainless steel threaded elbow requirements.
