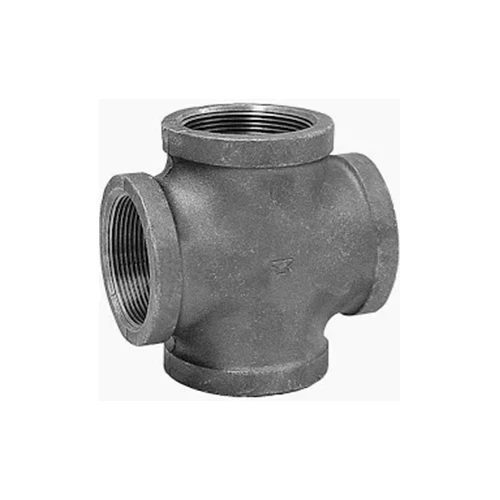

Forged Steel Female Threaded Cross – High Performance Forged Steel Pipe Fittings
✅ Forged Steel Female Threaded Cross – High Performance Forged Steel Pipe Fittings
SSM supplies premium quality Forged Steel Female Threaded Cross Fittings, designed for reliable four-way threaded pipe connections in high-pressure industrial, hydraulic, instrumentation, oil & gas, and process piping systems.
Manufactured from high-quality forged steel materials such as ASTM A105 carbon steel, ASTM A350 LF2 low-temperature steel, and alloy steel options, these threaded cross fittings provide excellent mechanical strength, pressure resistance, and long service life in demanding operating environments. The four-way branch design enables fluid distribution in multiple directions, offering flexible solutions for complex piping layouts where compact and reliable connections are required.
With precision forging, accurate thread machining, and strict quality inspection, Forged Steel Female Threaded Cross Fittings ensure secure connections, excellent sealing performance, and dependable operation in high-pressure threaded piping applications.
✅ Key Features
Product Type:
Forged Steel Female Threaded Cross / Forged Threaded Four-Way Pipe Fitting
Material:
ASTM A105 Carbon Steel / A350 LF2 / Alloy Steel / Stainless Steel Options
Standard:
ASME B16.11 / MSS SP-79 / BS 3799 / ISO / Custom Standards
Design Type:
Equal Cross / Reducing Cross (Available Options)
Connection Type:
Female Thread × Female Thread × Female Thread × Female Thread
Thread Standard:
NPT / BSP / BSPT / PT / Customized Thread Types
Manufacturing Process:
Forging + CNC Machining + Precision Threading
Pressure Rating:
Class 2000 / 3000 / 6000 / 9000
Surface Finish:
Black Oxide / Shot Blasted / Galvanized / Machined Finish
Size Range:
1/8" – 4" (DN6 – DN100)
(Custom Sizes Available)
Inspection & Certification:
Dimensional Inspection / Thread Inspection / Pressure Testing / MTC Available
🔧 Material Properties – ASTM A105 Forged Carbon Steel
| Property | Typical Value |
|---|---|
| Tensile Strength | ≥485 MPa |
| Yield Strength | ≥250 MPa |
| Elongation | ≥22% |
| Hardness | ≤187 HB |
| Density | Approx. 7.85 g/cm³ |
| Service Temperature | Approx. -29°C to +425°C |
⚙️ Advantages
✅ High Strength Forged Construction
Manufactured through forging processes, providing a dense metal structure, excellent mechanical strength, and improved resistance to pressure, impact, and mechanical stress.
✅ Four-Way Flow Distribution Design
The cross configuration allows connection of four pipelines, enabling efficient fluid distribution and flexible piping system design.
✅ Reliable Female Thread Connection
Precision-machined female threads provide secure installation, excellent sealing performance, and easy maintenance without welding equipment.
✅ Excellent Pressure Resistance
Designed for high-pressure applications, suitable for industrial systems requiring durable and dependable threaded fittings.
✅ Compact Installation Solution
The forged threaded cross design saves installation space and is ideal for equipment connections, instrumentation systems, and compact piping layouts.
✅ Multiple Material and Thread Options
Available in carbon steel, low-temperature steel, alloy steel, and stainless steel materials with various thread standards to meet different application requirements.
📋 Technical Specifications
| Item | Specification |
|---|---|
| Fitting Type | Forged Steel Female Threaded Cross |
| Material | ASTM A105 / A350 LF2 / Alloy Steel / Stainless Steel |
| Design | Equal Cross / Reducing Cross |
| Connection | Female Thread |
| Thread Type | NPT / BSP / BSPT |
| Pressure Class | 2000 / 3000 / 6000 / 9000 |
| Standard | ASME B16.11 |
| Manufacturing | Forged Construction |
| Testing | Thread Inspection / Dimensional Inspection / Pressure Test |
| Certification | MTC / EN10204 3.1 Available |
✅ Applications
Oil & Gas Industry
Used in high-pressure pipeline systems, wellhead equipment, production facilities, and oilfield piping connections.
Petrochemical Industry
Applied in process piping, chemical equipment, and fluid control systems requiring strong and reliable threaded connections.
Hydraulic Systems
Suitable for hydraulic control lines, pumps, valves, and high-pressure fluid equipment.
Instrumentation Systems
Ideal for compact tubing connections, pressure measurement systems, and control panels.
Power Generation
Used in auxiliary piping, fuel systems, and industrial equipment connections.
General Industrial Piping
Applied for air, gas, oil, and liquid distribution systems in various industrial environments.
✅ Why Choose SSM
Over 30 years of experience in forged steel pipe fittings manufacturing
Professional production according to ASME B16.11 and international standards
Complete material traceability with MTC / EN10204 certification
Supply of ASTM A105, A350 LF2, alloy steel, stainless steel, and special alloy materials
Advanced forging, CNC machining, and thread inspection capabilities
Customized sizes, pressure ratings, materials, and thread configurations available
Strict quality control ensures dimensional accuracy and reliable sealing performance
Global supply capability with professional technical support
📩 Request A Quote
SSM can supply Forged Steel Female Threaded Cross Fittings in various sizes, materials, pressure classes, thread standards, and surface finishes to meet high-pressure industrial piping requirements.
Contact SSM today for pricing, technical datasheets, material certificates, and worldwide shipping solutions.
