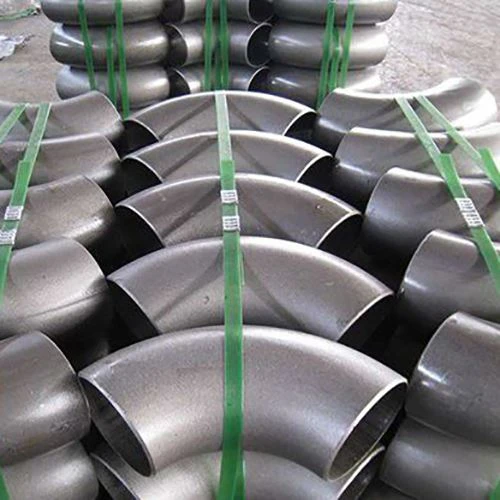

✅ Carbon Steel Elbow – High Performance Carbon Steel Pipe Fittings

SSM supplies premium quality Carbon Steel Elbows, designed for reliable pipeline direction changes, efficient fluid transportation, and long-term performance in industrial piping systems.

Manufactured from high-quality carbon steel materials such as ASTM A234 WPB, ASTM A420 WPL6, and other industrial-grade carbon steel specifications, these elbows provide excellent mechanical strength, impact resistance, and durability in demanding operating environments.

Carbon steel elbows are widely used to change the direction of pipelines while maintaining smooth fluid flow. Available in different angles and radius designs, including 45° elbow, 90° elbow, 180° return bend, long radius elbow, and short radius elbow, they provide flexible solutions for various piping layouts.

With advanced hot forming technology, precision dimensional control, and strict quality inspection, SSM Carbon Steel Elbows ensure reliable welding performance, excellent pressure resistance, and long service life for oil & gas, petrochemical, power generation, water treatment, and industrial piping applications.

✅ Product Overview

A Carbon Steel Elbow is a pipe fitting used to change the direction of a piping system. It connects two pipes at a specific angle, allowing pipelines to bypass obstacles, adjust routing, and optimize installation layouts.

According to the bending angle and radius, carbon steel elbows are commonly classified as:

90 Degree Carbon Steel Elbow: The most widely used elbow type for standard pipeline direction changes.

45 Degree Carbon Steel Elbow: Used for gradual flow direction adjustments.

180 Degree Return Bend: Used to reverse flow direction in heat exchangers and process systems.

Long Radius (LR) Elbow: Centerline radius is typically 1.5 times the pipe diameter, providing smoother flow and lower pressure loss.

Short Radius (SR) Elbow: Centerline radius is equal to the pipe diameter, suitable for compact installation spaces.

✅ Key Features

Product Type:
Carbon Steel Elbow / Carbon Steel Butt Weld Elbow / Pipe Bend

Material:
Carbon Steel
ASTM A234 WPB / WPC
ASTM A420 WPL6 (Low Temperature Service)
Other Carbon Steel Grades Available

Angle Options:
45° / 90° / 180°

Radius Options:
Long Radius (LR) / Short Radius (SR)

Standard:
ASME B16.9 / MSS SP-75 / ASTM A234 / DIN / EN / ISO / Custom Standards

Connection Type:
Butt Weld Ends

Manufacturing Process:
Hot Forming / Seamless Forming / Mandrel Bending

Surface Finish:
Black Painting / Anti-Rust Oil / Sand Blasting / Epoxy Coating / Customized Coating

Size Range:
1/2" – 48" (DN15 – DN1200)
(Custom Sizes Available)

Wall Thickness:
SCH 10 / SCH 20 / SCH 40 / SCH 80 / SCH 160 / Customized

⚙️ Advantages

✅ Excellent Mechanical Strength

Carbon steel elbows provide high tensile strength, toughness, and impact resistance, making them suitable for heavy-duty piping systems.

✅ Smooth Pipeline Direction Change

The curved design enables efficient flow redirection while reducing turbulence and pressure loss compared with sharp-angle connections.

✅ Wide Range of Configurations

Available in various angles, radiuses, sizes, and wall thicknesses to meet different engineering requirements.

✅ Excellent Welding Performance

Carbon steel materials provide good weldability, ensuring strong and reliable butt weld connections.

✅ High Temperature and Pressure Resistance

Suitable for industrial systems operating under demanding pressure and temperature conditions.

✅ Economical Industrial Solution

Carbon steel elbows provide reliable performance with excellent cost efficiency compared with stainless steel and alloy alternatives.

🔧 Typical Material Properties – ASTM A234 WPB Carbon Steel

📋 Technical Specifications

✅ Applications

Oil & Gas Industry

Used in pipelines, refineries, drilling facilities, offshore platforms, and process systems requiring strong and reliable direction changes.

Petrochemical Industry

Applied in chemical processing pipelines, reactors, heat exchangers, and industrial fluid systems.

Power Generation Facilities

Used in steam pipelines, boiler systems, cooling water systems, and auxiliary piping.

Water Treatment Systems

Suitable for water supply networks, wastewater systems, pumps, and filtration equipment.

Construction & HVAC Systems

Applied in heating, ventilation, air conditioning, and fire protection piping systems.

Marine Engineering

Used in shipbuilding, offshore projects, seawater pipelines, and marine equipment.

General Industrial Piping

Suitable for transportation of water, oil, gas, air, steam, and other industrial fluids.

⚠️ Installation Notes

Select the appropriate elbow angle and radius according to pipeline layout and flow requirements.

Confirm that elbow wall thickness matches the connected pipe schedule.

Proper welding procedures should be followed to ensure connection strength and leak resistance.

Surface protection such as coating or painting should be considered for corrosive environments.

✅ Why Choose SSM

Over 30 years of experience in carbon steel and industrial pipe fitting manufacturing

Professional production according to ASME, ASTM, MSS, DIN, and EN standards

Complete material traceability with MTC / EN10204 3.1 certification

Supply of ASTM A234 WPB, ASTM A420 WPL6, stainless steel, alloy steel, and special materials

Advanced hot forming, bending, machining, and inspection capabilities

Customized angles, radiuses, dimensions, wall thicknesses, and coatings available

Strict quality control ensures dimensional accuracy and reliable performance

Reliable global supply capability with professional technical support

📩 Request A Quote

SSM can supply Carbon Steel Elbows in various sizes, materials, angles, radius types, and wall thickness configurations to meet oil & gas, industrial, construction, and engineering project requirements.

Contact SSM today for pricing, technical datasheets, material certificates, and worldwide shipping solutions.
