90° Stainless Steel Short Radius Elbow

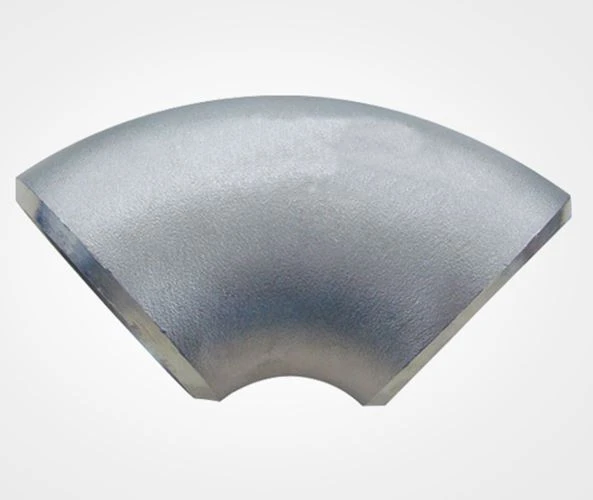

✅ 90° Stainless Steel Short Radius Elbow – High Performance Stainless Steel Pipe Fittings
SSM supplies premium quality 90 Degree Stainless Steel Short Radius Elbows, designed for efficient pipeline direction changes in industrial, sanitary, chemical, hydraulic, and process piping systems.
Manufactured from high-grade stainless steel materials including 304, 304L, 316, and 316L stainless steel, these short radius elbows provide excellent corrosion resistance, high mechanical strength, and reliable performance in demanding operating environments. The short radius design offers a compact installation solution where space is limited while maintaining smooth and stable fluid flow.
With precision forming technology, accurate dimensions, and high-quality surface finishing, SSM 90° Stainless Steel Short Radius Elbows ensure reliable connections, excellent durability, and long service life in applications requiring corrosion resistance, cleanliness, and space-saving piping layouts.
✅ Key Features
Product Type:
90 Degree Stainless Steel Short Radius Elbow / Stainless Steel SR Elbow
Material:
Stainless Steel 304 / 304L / 316 / 316L / Duplex Stainless Steel Options
Standard:
ASME B16.9 / ASTM A403 / DIN / EN / ISO / Custom Standards
Elbow Angle:
90 Degree
Radius Type:
Short Radius (1D)
Connection Type:
Butt Weld / Socket Weld / Threaded / Customized Connection
Design:
Short Radius Elbow / Seamless or Welded Elbow
Manufacturing Process:
Hot Forming / Cold Forming / Seamless Forming / Welding Construction
Surface Finish:
Polished / Pickled / Passivated / Sand Blasted
Surface Roughness:
Ra ≤ 0.8 μm or Customized
Size Range:
1/2" – 24" (DN15 – DN600)
(Custom Sizes Available)
Wall Thickness:
SCH 5S / SCH 10S / SCH 40S / SCH 80S / Customized
⚙️ Advantages
✅ Compact Short Radius Design
The short radius configuration provides a tighter turning solution compared with long radius elbows, making it ideal for piping systems with limited installation space.
✅ Excellent Corrosion Resistance
Manufactured from stainless steel materials, offering outstanding resistance against corrosion, oxidation, moisture, chemicals, and harsh industrial environments.
✅ Smooth Flow Direction Change
The 90-degree curved design enables efficient pipeline direction changes while reducing flow disturbance and pressure loss.
✅ Strong Mechanical Performance
High-quality stainless steel construction provides excellent strength, toughness, and durability under pressure and temperature variations.
✅ Hygienic Surface Finish
Smooth internal and external surfaces reduce contamination risks and support clean applications requiring high hygiene standards.
✅ Flexible Connection Options
Available with butt weld, socket weld, threaded, and customized connection methods for easy integration into different piping systems.
🔧 Typical Material Properties (Stainless Steel 316L)
| Property | Typical Value |
|---|---|
| Tensile Strength | ≥485 MPa |
| Yield Strength | ≥170 MPa |
| Elongation | ≥40% |
| Hardness | ≤95 HRB |
| Chromium (Cr) | 16–18% |
| Nickel (Ni) | 10–14% |
| Molybdenum (Mo) | 2–3% |
| Carbon (C) | ≤0.03% |
✅ Applications
Food & Beverage Processing Systems
Used in hygienic piping systems, processing equipment, beverage production lines, and clean fluid transportation.
Pharmaceutical & Biotechnology Equipment
Suitable for high-purity process piping requiring excellent corrosion resistance and smooth surface finishes.
Chemical Processing Industry
Applied in chemical pipelines, reactors, storage systems, and corrosive media transportation.
Oil & Gas Facilities
Used in process piping, refining equipment, and industrial fluid systems requiring durable stainless steel fittings.
Water Treatment Systems
Suitable for filtration systems, purification equipment, pumps, and industrial water pipelines.
Hydraulic & Industrial Piping Networks
Applied in hydraulic systems, compressed air systems, and general industrial pipeline connections.
📋 Technical Specifications
| Item | Specification |
|---|---|
| Fitting Type | 90 Degree Stainless Steel Short Radius Elbow |
| Material | SS304 / SS304L / SS316 / SS316L / Duplex Stainless Steel |
| Radius | Short Radius (1D) |
| Angle | 90 Degree |
| Connection | Butt Weld / Socket Weld / Threaded |
| Standard | ASME B16.9 / ASTM A403 |
| Manufacturing | Seamless Forming / Welded Construction |
| Inspection | Dimensional Inspection / Material Testing / Surface Inspection |
| Certification | MTC / EN10204 3.1 Available |
✅ Why Choose SSM
Over 30 years of experience in stainless steel pipe fittings manufacturing
Professional production according to international standards including ASME, ASTM, DIN, and ISO requirements
Complete material traceability with MTC / EN10204 certification
Supply of SS304, SS304L, SS316, SS316L, duplex stainless steel, and special alloy materials
Advanced forming, welding, machining, and surface treatment capabilities
Customized sizes, wall thicknesses, connection types, and finishes available
Strict quality control ensures dimensional accuracy and reliable performance
Global supply capability with professional technical support
📩 Request A Quote
SSM can supply 90° Stainless Steel Short Radius Elbows in various sizes, materials, wall thicknesses, connection types, and surface finishes to meet sanitary, industrial, and high-performance piping requirements.
Contact SSM today for pricing, technical datasheets, material certificates, and worldwide shipping solutions.
