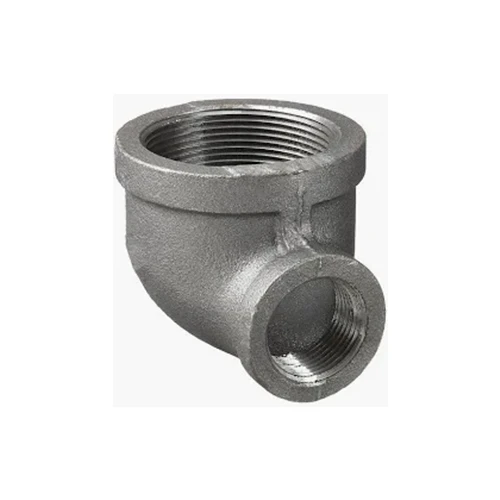

90 Degree Forged Steel Reducing Threaded Elbow – High Performance Forged Steel Pipe Fittings
✅ 90 Degree Forged Steel Reducing Threaded Elbow – High Performance Forged Steel Pipe Fittings
SSM supplies premium quality 90 Degree Forged Steel Reducing Threaded Elbows, designed for reliable pipeline direction changes and size reduction connections in high-pressure industrial, hydraulic, oil & gas, petrochemical, and process piping systems.
Manufactured from high-grade forged steel materials such as ASTM A105 carbon steel, ASTM A350 LF2, and alloy steel, these reducing threaded elbows provide excellent mechanical strength, pressure resistance, and durability in demanding operating environments. The reducing design combines a 90-degree directional change with a pipe diameter transition, providing a compact and efficient solution for complex piping layouts.
With precision forging, accurate thread machining, and strict quality control, forged steel reducing threaded elbows ensure reliable sealing performance, smooth flow transition, and long service life in high-pressure threaded piping applications.
✅ Key Features
Product Type: Forged Steel Reducing Threaded Elbow / 90 Degree Reducing Elbow
Material: Forged Carbon Steel ASTM A105 / A350 LF2 / Alloy Steel / Stainless Steel Options
Standard: ASME B16.11 / MSS SP-79 / BS 3799 / ISO / Custom Standards
Elbow Angle: 90 Degree
Connection Type: Female Thread × Female Thread / Male × Female Thread (Optional)
Thread Standard: NPT / BSP / BSPT / PT / Custom Thread Types
Design: Reducing Elbow / Threaded Pipe Fitting
Manufacturing Process: Forging + CNC Machining + Precision Threading
Pressure Rating: Class 2000 / 3000 / 6000 / 9000
Surface Finish: Black Oxide / Shot Blasting / Galvanized / Machined Finish
Size Range: 1/8" – 4" (DN6 – DN100)
(Custom Sizes Available)
⚙️ Advantages
Manufactured from forged steel for excellent mechanical strength and pressure resistance
90-degree elbow design provides efficient pipeline direction change while reducing installation space
Reducing configuration allows connection between different pipe sizes without additional reducers
Precision-machined threads provide secure connections and excellent sealing performance
Suitable for high-pressure and high-temperature industrial piping systems
Compact threaded design enables fast installation and easy maintenance without welding equipment
Available in various materials and pressure classes to meet different application requirements
🔧 Typical Material Properties (ASTM A105 Forged Carbon Steel)
| Property | Typical Value |
|---|---|
| Tensile Strength | ≥485 MPa |
| Yield Strength | ≥250 MPa |
| Elongation | ≥22% |
| Hardness | ≤187 HB |
| Density | Approx. 7.85 g/cm³ |
| Service Temperature | Approx. -29°C to +425°C |
✅ Applications
Oil & Gas Industry
Used in pipeline systems, wellhead equipment, refineries, and high-pressure process piping.
Petrochemical Industry
Applied in chemical processing units, pressure equipment, and industrial fluid systems.
Hydraulic Systems
Suitable for hydraulic control lines, pumps, valves, and high-pressure hydraulic equipment.
Power Generation
Used in steam, cooling, fuel, and auxiliary piping systems requiring reliable forged fittings.
Instrumentation Systems
Ideal for compact control lines, measurement equipment, and threaded connections.
General Industrial Piping
Used for air, gas, oil, and liquid transportation systems in various industries.
📋 Technical Specifications
| Item | Specification |
|---|---|
| Fitting Type | 90 Degree Forged Steel Reducing Threaded Elbow |
| Material | ASTM A105 / A350 LF2 / Alloy Steel / Stainless Steel |
| Angle | 90 Degree |
| Connection | Threaded |
| Thread Type | NPT / BSP / BSPT |
| Pressure Class | 2000 / 3000 / 6000 / 9000 |
| Standard | ASME B16.11 |
| Manufacturing | Forged Construction |
| Inspection | Dimensional Inspection / Thread Inspection / Pressure Testing |
| Certification | MTC / EN10204 3.1 Available |
✅ Why Choose SSM
Over 30 years of experience in forged steel pipe fittings manufacturing
Professional production according to international standards
Complete material traceability with MTC / EN10204 certification
Supply of ASTM A105, A350 LF2, alloy steel, stainless steel, and special alloy materials
Advanced forging, machining, and thread inspection capabilities
Customized sizes, pressure ratings, materials, and connection types available
Strict quality control ensures dimensional accuracy and reliable performance
Reliable global supply capability and technical support
📩 Request A Quote
SSM can supply 90 Degree Forged Steel Reducing Threaded Elbows in various sizes, materials, pressure classes, thread standards, and surface finishes to meet industrial piping requirements.
Contact SSM today for pricing, technical datasheets, material certificates, and worldwide shipping solutions.
