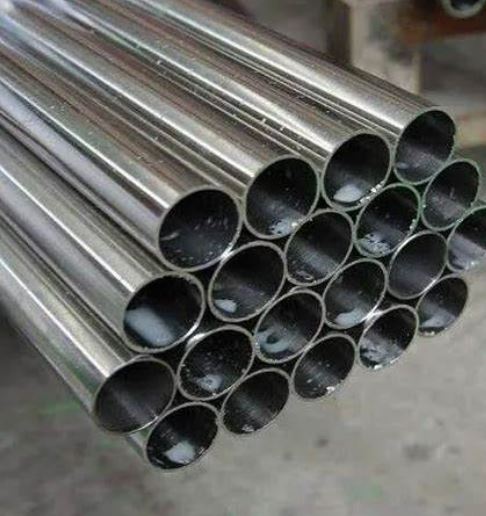

TP 317 Stainless Steel Pipe And Tube

TP 317 stainless steel pipe and tube are tubular products made from stainless steel grade 317. They serve as conduits for transporting fluids or gases in various industrial applications.

TP 317 Stainless Steel Pipe Details:

Sizes: TP 317 stainless steel pipes come in various sizes ranging from 1/8" to 24" nominal pipe size (NPS) with schedules ranging from Sch 5S to Sch XXS.

ASTM A312 TP317 Specification: ASTM A312 TP317 specification covers seamless, welded, and heavily cold worked austenitic stainless steel pipes intended for high-temperature and general corrosive service.

SS 317 Pipe Finish Types: Common finish types for TP 317 stainless steel pipes include annealed and pickled (AP), mill finish (MF), brushed finish, and polished finish (such as 180 grit, 320 grit, or mirror).

Type of 317 Stainless Steel Pipe:

A312 GR TP 317 Stainless Steel Seamless Pipe

Stainless Steel 317 Welded Pipes

A312-TP317 ERW Pipe

ASTM A312 Stainless Steel 317 Pipe Price per kg in India: The price of ASTM A312 TP317 stainless steel pipes in India can vary from INR 250 to INR 600 per kilogram, depending on factors such as size, quantity, and market conditions.

Manufacturing Process of TP317 Cold Worked Pipe and Annealed Pipe: TP317 stainless steel pipes can be manufactured by processes such as hot extrusion, cold drawing, cold rolling, or welding, followed by annealing or heat treatment as required to achieve desired properties.

Stainless Steel 317 Pipe for Sale: TP317 stainless steel pipes are available for sale from various manufacturers, distributors, and suppliers worldwide.

Stainless Steel 317 Seamless Pipe Schedule Chart: The schedule chart for TP317 stainless steel seamless pipes specifies wall thicknesses ranging from Sch 5S (0.065") to Sch XXS (0.5").

ASTM A312 TP317 Mechanical Properties (Typical values at room temperature):

Tensile Strength: ≥ 515 MPa

Yield Strength: ≥ 205 MPa

Elongation: ≥ 35%

Hardness: ≤ 217 HBW or ≤ 95 HRB

A312 TP317 Chemical Composition (Percentage by weight):

Chromium (Cr): 18% - 20%

Nickel (Ni): 11% - 15%

Molybdenum (Mo): 3% - 4%

Carbon (C): ≤ 0.08%

Manganese (Mn): ≤ 2%

Silicon (Si): ≤ 1%

Phosphorus (P): ≤ 0.045%

Sulfur (S): ≤ 0.03%

Nitrogen (N): ≤ 0.1%

SA 312 TP 317 Equivalent: SA 312 TP 317 is the equivalent designation for ASTM A312 TP317 stainless steel pipes as per ASME standards.

317 Stainless Steel Pipe Tolerances: TP317 stainless steel pipes typically adhere to tolerances specified in ASTM A312 or customer-specific requirements.

SA312 TP317 Density: The density of TP317 stainless steel is approximately 8.00 g/cm³.

HS Code For Stainless Steel Pipe 317: The HS code for stainless steel pipes, including TP 317, is 7304.11.00.

This information provides a comprehensive overview of TP 317 stainless steel pipes. If you need further details or clarification, feel free to ask!
