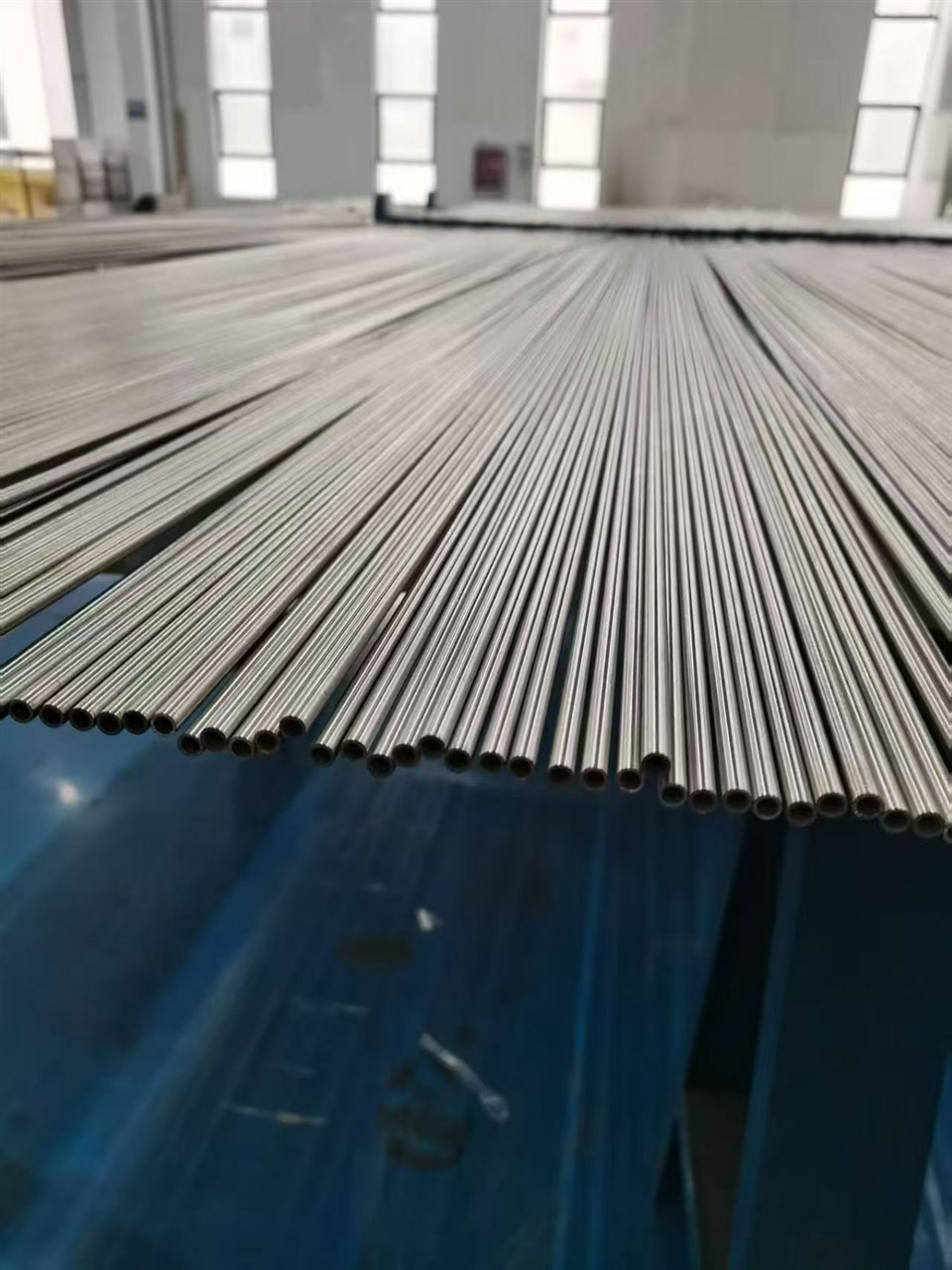

Inconel 600 6.35×0.89×3000 Smls Pipe
SSM supplies Inconel 600 (UNS N06600) seamless pipes in size 6.35×0.89×3000 mm, manufactured according to ASTM B167 / ASME SB167 standards. These pipes offer outstanding corrosion resistance, high-temperature strength, and durability for critical chemical and industrial applications.
Material Overview:
Inconel 600, designated as UNS N06600, is a nickel-chromium-iron alloy known for its excellent resistance to oxidation and corrosion at high temperatures. It also offers superior strength and good workability, making it ideal for applications in chemical processing, heat treatment, and aerospace industries.
Specifications:
Grade: Inconel 600
UNS Number: N06600
Standard: ASTM B167 / ASME SB167
Type: Seamless Pipe (SMLS)
Dimensions: 6.35 mm (OD) × 0.89 mm (WT) × 3000 mm (Length)
Delivery Condition: Solution Annealed / Bright Annealed
Chemical Composition (Typical %):
| Element | Content (%) |
|---|---|
| Nickel (Ni) | ≥ 72.0 |
| Chromium (Cr) | 14.0–17.0 |
| Iron (Fe) | 6.0–10.0 |
| Manganese (Mn) | ≤ 1.0 |
| Silicon (Si) | ≤ 0.5 |
| Carbon (C) | ≤ 0.15 |
| Sulfur (S) | ≤ 0.015 |
| Copper (Cu) | ≤ 0.5 |
Mechanical Properties (at Room Temperature):
| Property | Typical Value |
|---|---|
| Tensile Strength | ≥ 550 MPa |
| Yield Strength (0.2% Offset) | ≥ 240 MPa |
| Elongation | ≥ 30% |
| Hardness | ≤ 85 HRB |
Key Features:
Excellent oxidation and scaling resistance up to 1100°C (2000°F)
High strength and toughness across a wide temperature range
Superior resistance to chloride-ion stress corrosion cracking
Good weldability and workability
Suitable for both oxidizing and reducing atmospheres
Typical Applications:
Heat exchangers and condensers
Furnace and heat-treatment equipment
Chemical processing and reactor tubing
Aerospace and power generation components
Nuclear engineering piping
