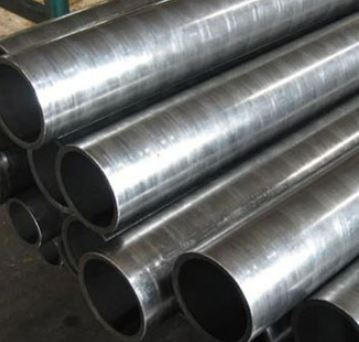

ASTM B161 Nickel UNS N02200 Seamless Pipe
ASTM B161 UNS N02200 Seamless Pipe refers to seamless nickel alloy pipes that comply with the ASTM B161 standard requirements, where UNS N02200 refers to nickel 200, which is a commercially pure nickel alloy. Here is a general description of the common types, outer diameter (OD), thickness, length, and process for this type of pipe:
- Common Types: Common types include straight pipes, bend pipes, branch pipes, etc., depending on specific applications and shape requirements.
- Outer Diameter (OD): The outer diameter is the measurement of the pipe's external diameter, usually in inches or millimeters. The common range of outer diameters may vary from 1/8 inch to several inches, depending on the pipe's purpose and requirements.
- Thickness: The thickness refers to the thickness of the pipe's wall, typically measured in inches or millimeters. The thickness may vary depending on factors such as the pipe's application and the pressure it will withstand.
- Length: The length of the pipe is usually measured in feet or meters. The common lengths may range from a few feet to several tens of feet, depending on specific application requirements and production processes.
- Process: The processing methods for nickel alloy pipes typically include hot rolling, hot extrusion, cold drawing, etc. The specific processing method may vary depending on the pipe's size, material, and requirements. Common processes include hot rolling, cold drawing, welding, etc.
These parameters may vary depending on specific production standards, customer requirements, and application environments. When selecting and manufacturing pipes, it is necessary to determine appropriate parameters based on specific requirements and standards.
Mechanical Properties
| Property | ASTM B161 UNS N02200 Seamless Pipe |
|---|---|
| Tensile Strength | Minimum: 55 ksi (380 MPa) |
| Yield Strength | Minimum: 15 ksi (105 MPa) |
| Elongation | Minimum: 35% |
Chemical Requirements
| Chemical Composition (Typical) | ASTM B161 UNS N02200 Seamless Pipe |
|---|---|
| Nickel (Ni) | 99.0% min |
| Copper (Cu) | 0.25% max |
| Iron (Fe) | 0.40% max |
| Manganese (Mn) | 0.35% max |
| Carbon (C) | 0.15% max |
| Silicon (Si) | 0.35% max |
| Sulfur (S) | 0.010% max |
