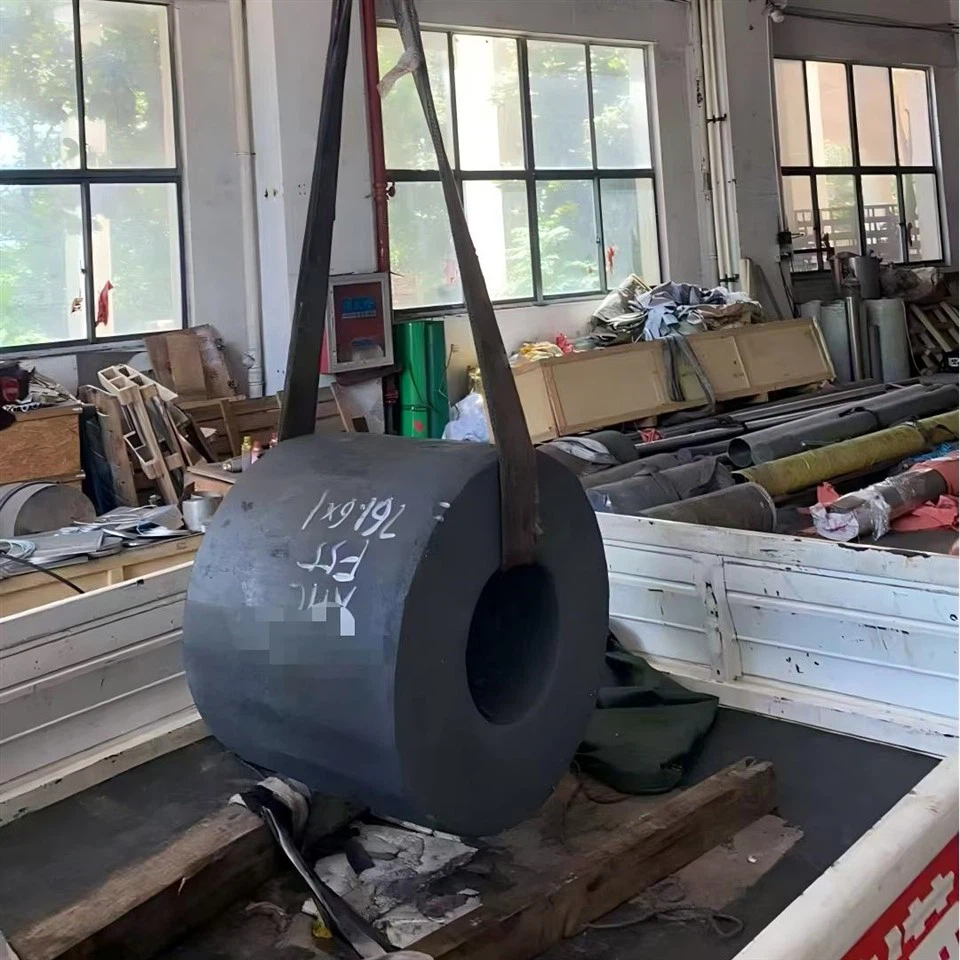

F55 End Ring
F55 End Ring
An F55 end ring refers to a circular component made from F55 super duplex stainless steel (UNS S32760 / W.Nr. 1.4501), commonly used in piping systems, pressure vessels, heat exchangers, or mechanical seals to provide sealing, connection, or structural support.
🔹 1. Material Overview
F55 (UNS S32760) is a super duplex stainless steel containing approximately 25% chromium, 7% nickel, and 3.6% molybdenum, with small additions of copper, tungsten, and nitrogen.
It combines the excellent corrosion resistance of austenitic stainless steels with the high strength of ferritic stainless steels.
Typical Chemical Composition (%):
| Element | Cr | Ni | Mo | N | Cu | W | Fe (Balance) |
|---|---|---|---|---|---|---|---|
| Content | 24–26 | 6–8 | 3–4 | 0.2–0.3 | 0.5–1.0 | 0.5–1.0 | Balance |
🔹 2. Definition of End Ring
An end ring is a circular ring installed at the end of a pipe or equipment flange, mainly used to:
Form a sealing surface with flanges or fittings
Provide mechanical support and alignment
Serve as a retaining or fixing ring in heat exchangers or jacketed pipes
🔹 3. Applications
F55 end rings are widely used in:
Offshore and marine engineering
Chemical and petrochemical processing
Pressure vessels and heat exchangers
Pumps, valves, and piping systems exposed to chlorides
🔹 4. Key Features
✅ Advantages:
Excellent resistance to pitting, crevice, and stress corrosion cracking
High mechanical strength (about twice that of 316L stainless steel)
Superior fatigue and wear resistance
Suitable for chloride-rich, high-pressure, and high-temperature environments
❌ Disadvantages:
Difficult to machine (requires special tools and welding procedures)
Higher cost compared to standard stainless steels
Sensitive to heat treatment and welding temperature control
