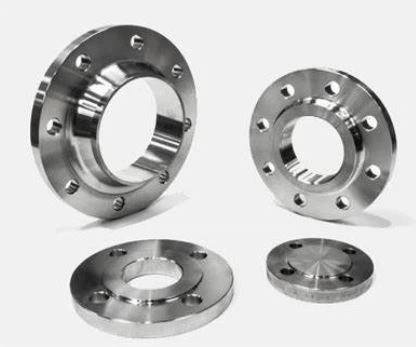

DIN EN 1092-1 Dimensions Of PN 40 Flanges

DIN EN 1092-1 PN 40 Flanges refer to a standardized set of flanges designed for use in piping systems where the maximum allowable pressure does not exceed PN 40 (40 bar or approximately 580 psi). These flanges conform to the DIN EN 1092-1 standard and are widely used in various industries for connecting pipes, valves, and fittings under high-pressure conditions.

Dimensions of PN 40 Flanges:

The dimensions of PN 40 flanges, including outer diameter, bore diameter, bolt hole size, bolt circle diameter, thickness, and hub diameter, are standardized in the DIN EN 1092-1 standard. These dimensions ensure compatibility and interchangeability.

Types of PN 40 Flanges:

PN 40 flanges can include various types such as:

Weld Neck Flanges

Slip-On Flanges

Threaded Flanges

Blind Flanges

Socket Weld Flanges

Sizes:

PN 40 flanges are available in a range of sizes to accommodate different pipe diameters. Common sizes range from DN 10 to DN 2000 and above, depending on manufacturer specifications and requirements.

Materials:

PN 40 flanges can be manufactured from various materials, including:

Carbon Steel (e.g., ASTM A105)

Stainless Steel (e.g., ASTM A182 F304/F304L, F316/F316L)

Alloy Steel (e.g., ASTM A182 F11, F22)

Cast Iron (e.g., EN-GJS-400-15)

Applications:

PN 40 flanges are commonly used in high-pressure applications where the fluid pressure does not exceed the PN 40 rating. These applications can include:

Chemical Processing

Petrochemical Plants

Oil and Gas Industry

Power Generation

High-pressure Industrial Piping Systems

Q&As:

Q: What are the typical dimensions of PN 40 flanges?

A: The dimensions of PN 40 flanges are specified in the DIN EN 1092-1 standard and include outer diameter, bore diameter, bolt hole size, bolt circle diameter, thickness, and hub diameter.

Q: Which materials are suitable for PN 40 flanges?

A: PN 40 flanges can be made from materials such as carbon steel, stainless steel, alloy steel, and cast iron. Material selection depends on factors such as pressure, temperature, corrosion resistance, and fluid compatibility.

Q: In which industries are PN 40 flanges commonly used?

A: PN 40 flanges find applications in various industries, including chemical processing, petrochemical plants, oil and gas industry, power generation, and high-pressure industrial piping systems. They provide a reliable connection for joining pipes, valves, and fittings in high-pressure applications.
